Data sheet: Nikkor AF-D 50 mm f/1.8

Pekka Buttler, 09/2022

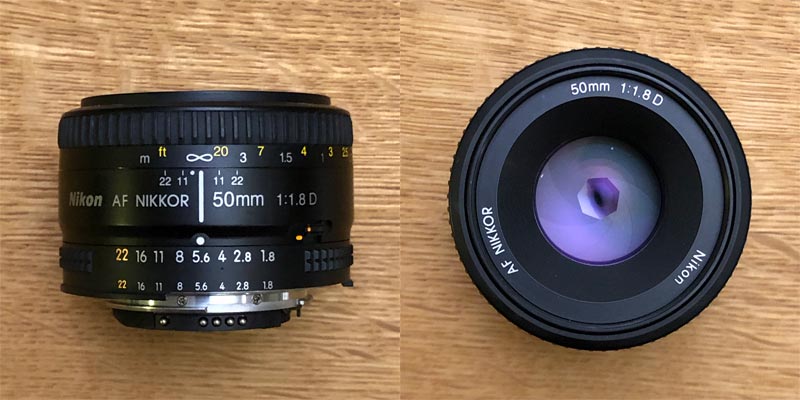

Pictured: Nikkor AF-D 50 mm f/1.8

Specifications

The table below summarizes the lens’ key specifications (measurements based on pictured sample):

Brand:AF NikkorLens name50mm 1:1.8 D
Focal length(s)150 mmAngle-of-view246°
Maximum Aperturef/1.8In Production2002–
Lens mountNikon FSubfamily (if applicable)AF-D
Length339,5 mmDiameter464,4 mm
Filter ring diameter52 mmWeight158 grams
Lens element count6Lens group count5
Aperture blades (S/R/C)57 SFocus throw130 °
Minimum focusing distance45 cmsMaximum magnification1:6,6
Has manual aperture ringYESHas Manual focus ringYES

Further notes:
• The AF-D Nikkor 50 mm f/1.8 was the last AF lens to be updated to D-specifications (and that by a margin of several years).
• Cosmetically this lens is rather different from other AF/AF-D era primes and one (at least: I) cannot avoid the conclusion that Nikon wanted the lens to not only be cheap, but also look cheap.
• Optically, the main difference between this lens and the series E Nikkor 50 mm f/1.8 introduced in 1979 is in the more advanced coatings of newer lenses.
• This lens was always the most affordable prime in Nikon’s AF lineup. Some 2,2 million copies of this AF-D variant were manufactured (The previous AF variants reached only 3/4 million copies).
• Nikon’s dedicated lens hood for this lens is the HR-2, a rubber lens hood, but many steel hoods of various generation fifties work just as well. If you’d like a metal hood, you can (tested) use the HS-11 and HN-3 hoods.

A brief genealogy of Nikon SLR lens types

Nikon is undoubtedly one of the great names in 35 mm SLR photography. The Nikon F mount has been in continuous production since 1959. During that time, the mount has developed/changed in some detail, however without ever fully sacrificing compatibility.

In short (a longer version is here), the development of Nikon’s SLR lenses can be traced as follows:
• 1959–1977: Pre-Ai. Manual focus lenses that use ‘rabbit ears’ to communicate selected aperture with the camera body.
• 1977–1986: Ai and Ai-s. Manual focus lenses that may have ‘rabbit ears’ for backward compatibility, but are designed to communicate selected aperture with the camera body through indentations in base of aperture control ring.
• 1986–today: AF and AF-D. Autofocus lenses that do not have a focusing motor within the lens, but rely on the focus motor within the camera. All AF and AF-D lenses are simultaneously Ai-s lenses (they are Ai-s lenses extended with AF) 6
• 1996–today AF-S and AF-P. Autofocus lenses that have an internal focusing motor and do not rely on the body having a focusing motor.

What camera manufacturer would not have a nifty fifty in their line-up? Interestingly, from the launch of the Nikon F system (1959) ever until the launch of the Ai 50 mm f/1.8 (1978), Nikon’s take on a nifty fifty was a 50 mm f/2 lens (for a run-down of that genealogy, see this data sheet). But with the introduction of this lens in 1978, Nikon upped its nifty fifty to f/1.8, thus gaining parity with most of the industry.

During the following decades a great many variants have been produced. To add some potential for confusion to the mix, some models were made for export markets, other for Japanese domestic markets. There was also a variants that clearly aimed for the ‘pancake’ mould. For a chronological summary of Nikon’s 50 mm f/1.8’s see below:

yearsSeriesoptical constructionaperture bladesMFDnotes, links
1978–1982Ai6 elements in 5 groups7, straight0,45 m[data sheet]
1979–1981series E6 elements in 5 groups7, straight0,6 mpancake, all-black design
1980–1982Ai-s6 elements in 5 groups7, straight0,45 mpancake, for Japanese market
1981–1985series E6 elements in 5 groups7, straight0,6 mpancake, silver-ring design
[data sheet]
1981–1985Ai-s6 elements in 5 groups7, straight0,45for export market
1985–2005Ai-s New6 elements in 5 groups7, straight0,6pancake, plastic focus ring
[data sheet]
1986–1990AF6 elements in 5 groups7, straight0,45plastic focus ring
[data sheet]
1990–2001AF new6 elements in 5 groups7, straight0,45rubber focus ring
2002–todayAF-D6 elements in 5 groups7, straight0,45new barrel design
[this lens]
2011–todayAF-S; G7 elements in 6 groups7, rounded0,45no aperture ring
2018–todayZ12 elements in 9 groups9, rounded0,4

Adapting

Besides adapting, this lens can be used natively on all current high-end Nikon dSLRs and several earlier medium-to-high-end older Nikon dSLRs. Moreover, if the camera body contains a slot-drive focusing motor, this lens will even auto-focus7. Likewise, if the lens has been retrofitted with ‘rabbit ears’, it can be natively used on all Nikon F-mount film cameras ever produced (without the rabbit ears, it is limited to post 1977 bodies).

Thanks to being a fully manual lens (manual aperture, manual focus), the lens can be adapted to all mirrorless cameras using a suitable dumb adapter (and such adapters are easy to find). Moreover, a large range of special adapters (helicoid adapters, tilt/shift adapters, speed boosters) for using Nikon F lenses on most mirrorless systems are available. Currently no adapters for mirrorless exist that would allow autofocus through the slot-drive screw.

Using Nikon F lenses on non-Nikon SLRs and dSLRs is likewise a distinct possibility. Thanks to the relatively generous flange focal distance of the Nikon F mount (46,5 mm), adapter rings for all dSLR mounts are available as well as for a goodly portion of film-era SLR mounts. Such rings will not allow autofocus, and are unlikely to support auto aperture, but even then the lenses can be used in stop-down metering mode.

Footnotes

1 Focal length is (unless stated otherwise) given in absolute terms, and not in Full-frame equivalent. For an understanding of whether the lens is wide/tele, see ‘Angle-of-view’.

2 Picture angle is given in degrees and concerns the diagonal picture angle. Rule of thumb:
> 90 ° ==> Ultra-wide-angle
70–90 ° ==> Wide-angle
50–70 ° ==> Moderate wide-angle
40–50 ° ==> ‘Standard’ or ‘normal’ lens
20–40 ° ==> Short tele lens
10-20 ° ==> Tele lens
5-10 ° ==> Long tele lens
< 5 ° ==> Ultra-tele lens

3 Length is given from the mount flange to the front of lens at infinity.

4 Diameter excludes protrusions such as rabbit ears or stop-down levers.

5 S=straight; R=rounded; C=(almost)circular at all apertures.

6 There is a further sub-class of AF-D lenses called AF-I lenses that are otherwise AF-D lenses (meaning, fully Ai-s compatible), but have an internal focus motor. Only long tele lenses were made in AF-I variants.

7 As of this writing, the following Nikon dSLRs fully support autofocus, aperture priority and manual metered modes on Nikkor AF/AF-D lenses: D2, D3, D4, D5, D6, Df, D200, D300, D300s, D500, D600, D610, D700, D750, D780, D800, D800E, D810, D850, D7000, D7100, D7200
