Data sheet: Canon FDn 28-55 mm f/3.5–4.5

Pekka Buttler, 08/2025

Specifications

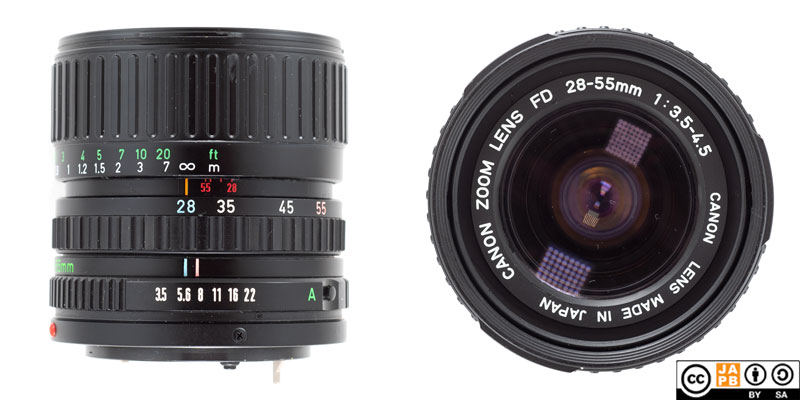

The table below summarises the lens’ key specifications (measurements based on pictured sample):

Brand:	Canon	Lens name	Zoom Lens FD 28-55 mm 1:3.5–4.5
Focal length(s)1	28-55 mm	Angle-of-view2	75°–43°
Maximum Aperture	f/3.5–4.5	In Production	1983–1987
Lens mount	Canon FD	Subfamily (if applicable)	new FD
Length3	63,3 mm	Diameter4	62,6 mm
Filter ring diameter	52 mm	Weight	210 grams
Lens element count	10	Lens group count	10
Aperture blades (S/R/C)5	5 S	Focus throw	225 °
Minimum focusing distance (measured)	0,29 m@entire focal length range	Maximum magnification (measured)	1:7,8 (@28mm) 1:4,1 (@55mm)
Has manual aperture ring	YES	Has Manual focus ring	YES
Aperture mechanism type	Automatic	Aperture click stops 6	3.5-5.6•8•11•16•22

Further notes:

• This is a relatively late addition to the Canon FDn lens lineup. It was introduced in 1983 at the same time as the Canon FDn 35–70/3.5–4.5. These two lenses (the 28–55 and 35–70 share the same maximum apertures, build quality, and general price point.
• This lens was – in its day – Canon’s first really affordable wide-angle zoom. At the time of its introduction it was less than a third of the price of any other Canon zoom wider than 35 mm.
• This lens is a two-ring zoom lens, with the rearmost ring controlling the zoom (focal length) and the frontmost ring controlling focusing distance.

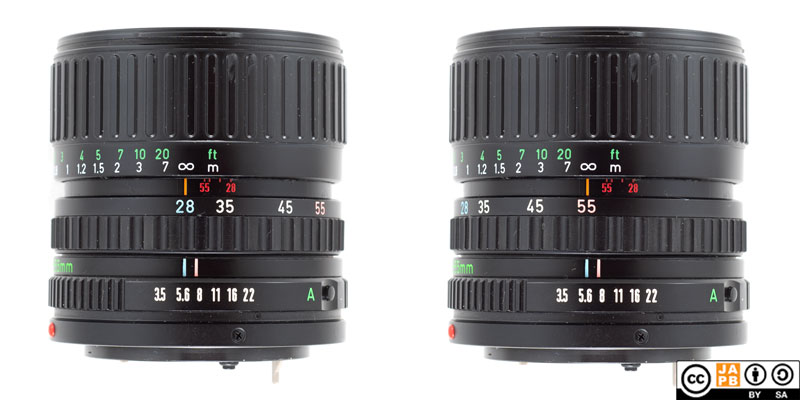

• The lens uses an internal zooming approach, meaning that the lens’ overall length does not change when zooming.

• On the other hand the lens’ length does change when focusing and the filter threads rotate in tandem with the focus ring.

• As a minor ace up its sleeve, the lens has a short minimum focusing distance which produces a rather good maximum magnification (if this was a Sigma lens, they shamelessly would’ve called it ‘macro’).
• Even though a this was a budget lens, it still sported a bayonet attachment for a lens hood.
• This lens was a one-off. By the Time Canon in 1987 introduced its EF-mount, technology had progressed to the point that both budget zooms (the 28–55/3.5–4.5 and 35–70/3.5–4.5) could be combined into the 28–70/3.5–4.5.

History of Canon FDn lenses

Canon is undoubtedly one of the great names in 35 mm SLR photography. Ever since the 1959 introduction of the Canonflex – Canon’s first interchangeable lens SLR – Canon has constantly focused on being at the forefront of Camera innovation. Often this has necessitated taking stock and redesigning both cameras, lenses and lens mounts. Unlike its arch-rival Nikon, Canon has not tried to integrate all novel features in the same lens mount, but has instead repeatedly launched new, modified mounts to facilitate new features, while still often (but not always) managing to maintain a decent degree of backwards compatibility.

In short (a longer version is here), the development of Canon SLR mounts can be traced as follows:
• 1959–1963: R-mount ⁷. Canon’s first SLR lens mount. Breech lock-type mount with aperture automation (camera is able to stop down lens for taking the shot.
• 1964–1969: FL-mount. Breech-lock type mount, physically similar mount as Canon R-mount, but camera-to-lens communication linkages somewhat different. Cannot communicate selected aperture to body (stop-down-metering only).
• 1970–1978: FD-mount. Breech-lock mount. FD lenses compatible with FL-cameras and vice versa. Manual focus lenses that communicate aperture information to camera, hence opening the door for automatic exposure (both shutter priority and aperture priority possible)
• 1979–1986: new FD-mount (a.k.a. FDn). Bayonet mount, backwards compatible with FL and FD mounts. Otherwise, as FD mount.
• 1987–today: EF-mount. Electronically controlled autofocus lenses that use an internal focusing motor. Compatible with previous mount lenses only using an adapter with optics.

The era of the Canon FD mount can be characterised by a gradual shift towards the ever-increasing use of plastics and lighter materials (see some more in the JAPB article on the Canon FL, FD and FDn mounts). In the chronology of this gradual shift:
• ‘Chrome nose’ FD lenses (1971–1973) are solid metal (often brass) and glass.
• Black nose FD lenses (1973–1979) are also metal and glass, but especially later, Mk II and III variants have shifted to using less metals and lighter metals.
• FDn lenses (1979–1987) typically make extensive use of plastics.

Another noteworthy point is related to the S.C. and S.S.C. acronyms found on some FD lens’ name rings: S.C. stands for “spectra coating”, while S.S.C. stands for “super spectra coating”. Both are proprietary marketing names for Canon’s optical coating technology. In theory S.S.C. is always a superior form of coating, but that does not mean that one should always try to get an S.S.C. lens, because:
• S.C. and S.S.C. are first and foremost marketing terms, that were not used on early Canon FD lenses, nor on most FDn lenses. Hence, a FDn lens is certain to have at least the level of coating of its direct (FD) predecessor, even though the S.S.(C.) marking is missing from the lens.
• Coating technology developed a lot during the 70s and 80s. A late S.C. coating is liable to be better optimised than an early S.S.C. coating.

Related versions

In terms of optical designs, this lens has no clear predecessors or successors.

In terms of position in the product lineup, this lens replaced the 1979 Canon FDn 28–50/3.5 and was in turn replaced in 1987 by the Canon EF 28–70/3.5–4.5

Adapting

This lens cannot be used natively on any current SLR or dSLRs. To use it in its native environment, you will need a Canon FD or FL-mount film body.

Thanks to being a fully manual lens (manual aperture, manual focus), the lens can be adapted to all mirrorless cameras using a suitable adapter. However, for the adapter to allow the lens to stop down, you will need an adapter that can be set to engage the FD lens’ aperture control lever.

Moreover, a large range of special adapters (helicoid adapters, tilt/shift adapters, speed boosters) for using Canon FD lenses on most mirrorless systems are available.

Using Canon FD lenses on dSLRs is a possibility, but is not problem free. Thanks to the relatively short flange focal distance of the Canon FD mount (at 42,0 mm, clearly shorter than that of any full-frame dSLR mount), any adapter will necessitate some corrective optics to achieve infinity focus.

Footnotes

1. Focal length is (unless stated otherwise) given in absolute terms, and not in Full-frame equivalent. For an understanding of whether the lens is wide/tele, see ‘Angle-of-view’. ↩︎
2. Picture angle is given in degrees and concerns the diagonal picture angle. Rule of thumb:
   > 90 ° ==> Ultra-wide-angle
   70–90 ° ==> Wide-angle
   50–70 ° ==> Moderate wide-angle
   40–50 ° ==> ‘Standard’ or ‘normal’ lens
   20–40 ° ==> Short tele lens
   10-20 ° ==> Tele lens
   5-10 ° ==> Long tele lens
   < 5 ° ==> Ultra-tele lens ↩︎
3. Length is given from the mount flange to the front of lens at its shortest. ↩︎
4. Diameter excludes protrusions such as rabbit ears or stop-down levers. ↩︎
5. S=straight; R=rounded; C=(almost)circular at all apertures. ↩︎
6. Numbers equal aperture values on aperture ring; • intermediate click; – no intermediate click. ↩︎
7. The Canon-R mount should possibly be renamed to (or referred to) as the Canonflex mount to avoid confusion with the modern mirrorless mount that is sometimes also referred to as the Canon R mount. ↩︎
