Data Sheet: Nikkor K 135 mm f/2.8 (I)

Pekka Buttler, 12/2022

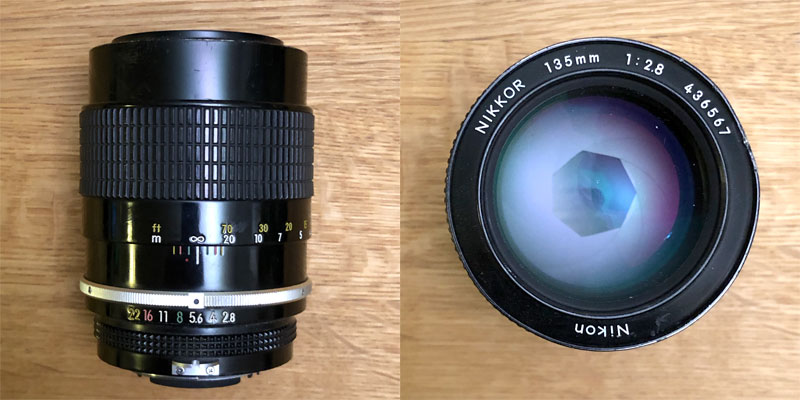

Pictured: Nikkor K 135 mm f/2.8

Specifications

The table below summarizes the lens’ key specifications (measurements based on pictured sample):

Brand:Nikon Lens nameNIKKOR 135mm 1:2.8
Focal length(s)1135 mmAngle-of-view218°
Maximum Aperturef/2.8In Production1975–1976
Lens mountNikon FSubfamily (if applicable)K-type (Pre-Ai)
Length396,9 mmDiameter473,0 mm
Filter ring diameter52 mmWeight601 grams
Lens element count4Lens group count4
Aperture blades (S/R/C)57 SFocus throw225 °
Minimum focusing distance1,5 mMaximum magnification1:9
Has manual aperture ringYESHas Manual focus ringYES

Further notes:
• There are two somewhat different K-type 135 mm f/2.8 Nikkors
• The first was produced 1975–1976, it used a 4/4 design, had an MFD of 1,5 metres, a focus throw of 225 °, and was overall significantly bulkier and heavier (pictured lens)
• The second was produced 1976–1977, it used a 5/4 design, had an MFD of 1,3 metres, a focus throw of 270 °, and was both slimmer, shorter, and lighter. This second is typically referred to as the “new”, and is largely similar to later Ai and Ai-s variants.
• This lens was introduced to replace the earlier, C-type 135 mm f/2.8. During the relatively short manufacturing run 27 000 copies were made.
• This lens sports a built-in lens hood.

A brief genealogy of Nikon SLR lens types

Nikon is undoubtedly one of the great names in 35 mm SLR photography. The Nikon F mount has been in continuous production since 1959. During that time, the mount has developed/changed in some detail, however without ever fully sacrificing compatibility.

In short (a longer version is here), the development of Nikon’s SLR lenses can be traced as follows:
• 1959–1977: Pre-Ai. Manual focus lenses that use ‘rabbit ears’ to communicate selected aperture with the camera body. Pre-Ai lenses can further be subdivided into
• F-type (1959–early 1970s: metal focus ring and single-coated),
• C-type (early 1970s–mid 1970s: metal focus ring and multicoated), and
• K-type (mid 1970s to 1977: rubber focus ring and multicoated).
A significant share of remaining Pre-Ai lenses have since been converted to Ai-spec (Ai’d)
• 1977–1986: Ai and Ai-s. Manual focus lenses that may have ‘rabbit ears’ for backward compatibility, but are designed to communicate selected aperture with the camera body through indentations in base of aperture control ring.
• 1986–today: AF and AF-D. Autofocus lenses that do not have a focusing motor within the lens, but rely on the focus motor within the camera. All AF and AF-D lenses are simultaneously Ai-s lenses (they are Ai-s lenses extended with AF) 6
• 1996–today AF-S and AF-P. Autofocus lenses that have an internal focusing motor and do not rely on the body having a focusing motor.

Nikon has manufactured 135 mm f/2.8 lenses for the Nikon F system from 1965 to 2005. The lineage of Nikkor 135 mm f/2.8 lenses is summarised below
• 1965–1971 135 mm f/2.8 (4 elements in 4 groups, 7 blades, 1,5 m MFD, “Nippon Kogaku NIKKOR-Q”, (F-type)
• 1971–1973 135 mm f/2.8 (4 elements in 4 groups, 7 blades, 1,5 m MFD, “Nikon NIKKOR-Q”, (F-type)
• 1973–1975 135 mm f/2.8 (4 elements in 4 groups, 7 blades, 1,5 m MFD, “Nikon NIKKOR-Q•C” (C-type)
• 1975–1976 135 mm f/2.8 (4 elements in 4 groups, 7 blades, 1,5 m MFD, “Nikon” (K-type) [this lens]
• 1976–1977 135 mm f/2.8 (5 elements in 4 groups, 7 blades, 1,3 m MFD, “Nikon” (K-type) “new”
• 1977–1981 135 mm f/2.8 (5 elements in 4 groups, 7 blades, 1,3 m MFD, “Nikon” (Ai-type)
• 1981–1985 135 mm f/2.8 (4 elements in 4 groups, 7 blades, 1,5 m MFD, “Nikon series E” (series E) [data sheet]
• 1981–2005 135 mm f/2.8 (5 elements in 4 groups, 7 blades, 1,3 m MFD, “Nikon” (Ai-s-type)

Adapting

There are good chances this lens can still be used natively:
• If the lens has been AI’d, this lens can be used natively on all current high-end Nikon dSLRs and several earlier medium-to-high-end older Nikon dSLRs7 as well as all post-1977 Nikon Film cameras.
• If it is in its original Pre-Ai form, it can be used natively on the Nikon Df and on all Nikon F-mount film cameras produced before 1977.

Thanks to being a fully manual lens (manual aperture, manual focus), the lens can be adapted to all mirrorless cameras using a suitable dumb adapter (and such adapters are easy to find). Moreover, a large range of special adapters (helicoid adapters, tilt/shift adapters, speed boosters) for using Nikon F lenses on most mirrorless systems are available.

Using Nikon F lenses on non-Nikon SLRs and dSLRs is likewise a distinct possibility. Thanks to the relatively generous flange focal distance of the Nikon F mount (46,5 mm), adapter rings for all dSLR mounts are available as well as for a goodly portion of film-era SLR mounts. Such rings may not allow for auto aperture, but even then the lenses can be used in stop-down metering mode.

Footnotes

1 Focal length is (unless stated otherwise) given in absolute terms, and not in Full-frame equivalent. For an understanding of whether the lens is wide/tele, see ‘Angle-of-view’.

2 Picture angle is given in degrees and concerns the diagonal picture angle. Rule of thumb:
> 90 ° ==> Ultra-wide-angle
70–90 ° ==> Wide-angle
50–70 ° ==> Moderate wide-angle
40–50 ° ==> ‘Standard’ or ‘normal’ lens
20–40 ° ==> Short tele lens
10-20 ° ==> Tele lens
5-10 ° ==> Long tele lens
< 5 ° ==> Ultra-tele lens

3 Length is given from the mount flange to the front of lens at infinity.

4 Diameter excludes protrusions such as rabbit ears or stop-down levers.

5 S=straight; R=rounded; C=(almost)circular at all apertures.

6 There is a further sub-class of AF-D lenses called AF-I lenses that are otherwise AF-D lenses (meaning, fully Ai-s compatible), but have an internal focus motor. Only long tele lenses were made in AF-I variants.

7 As of this writing, the following Nikon dSLRs fully support Aperture priority and manual metered modes on Nikkor Ai lenses: D2, D3, D4, D5, D6, D200, D300, D300s, D500, D600, D610, D700, D750, D780, D800, D800E, D810, D850, D7000, D7100, D7200
