Data sheet: Micro-Nikkor AF-D 60 mm f/2.8

Pekka Buttler, 09/2022

Specifications

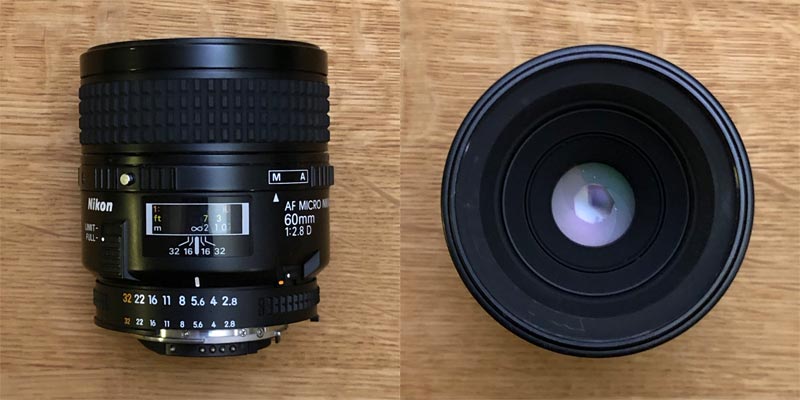

The table below summarizes the lens’ key specifications (measurements based on pictured sample):

Brand:AF Micro NikkorLens name60mm 1:2.8 D
Focal length(s)160 mmAngle-of-view239°40
Maximum Aperturef/2.8In Production1989–1993 (AF (new))
1993–2008 (AF-D)
Lens mountNikon FSubfamily (if applicable)AF/AF-D
Length374,4 mmDiameter471,9 mm
Filter ring diameter62 mmWeight439 grams
Lens element count8Lens group count7
Aperture blades (S/R/C)57 SFocus throw140 °
Minimum focusing distance21,9 cmsMaximum magnification1:1
Has manual aperture ringYESHas Manual focus ringYES

Further notes:
• Nikon traditionally refers to its macro lenses with the term ‘micro‘.
• The AF Micro-Nikkor 60 mm f/2.8 was Nikon’s first 60 mm lens. That lens was upgraded to AF-D specs in 1993.
• The lens uses Nikon’s Close Range Correction (CRC) to optimize close-up performance.
• Nikon has produced roughly half a million copies of this lens (AF and AF-D variants together).
• The lens has a focus limiter switch, to speed up autofocusing when the macro-range is not needed.
• The lens offers a dedicated ring to engage/disengage autofocus.
• The front lens is deeply recessed, hence using a lens hood is not likely to be needed. However, should one want to use a lens hood, Nikon offers the dedicated HN-22 steel hood .

History (when relevant)

Nikon is undoubtedly one of the great names in 35 mm SLR photography. The Nikon F mount has been in continuous production since 1959. During that time, the mount has developed/changed in some detail, however without ever fully sacrificing compatibility.

In short (a longer version is here), the development of Nikon’s SLR lenses can be traced as follows:
• 1959–1977: Pre-Ai. Manual focus lenses that use ‘rabbit ears’ to communicate selected aperture with the camera body.
• 1977–1986: Ai and Ai-s. Manual focus lenses that may have ‘rabbit ears’ for backward compatibility, but are designed to communicate selected aperture with the camera body through indentations in base of aperture control ring.
• 1986–today: AF and AF-D. Autofocus lenses that do not have a focusing motor within the lens, but rely on the focus motor within the camera. All AF and AF-D lenses are simultaneously Ai-s lenses (they are Ai-s lenses extended with AF) 6
• 1996–today AF-S and AF-P. Autofocus lenses that have an internal focusing motor and do not rely on the body having a focusing motor.

Nikon has been producing Micro lenses since 1961 (before that, the customary approach was to use lenses dedicated for use on a bellows). Nikon has further also divided its micro offering in three segments: short micro lenses (50-60 mm); medium micro lenses (105 mm); and long micro lenses (200 mm). Most early long micro lenses were branded ‘Medical’ and contained an integrated light source.

The genealogy of Nikon’s approach to short micro lenses can be summarised as follows:
• 1961–1963 (F-type) 5,5 cm f/3.5 Micro, 5 elements in 4 groups, 1:1 (660 ° focus throw)
• 1963–1968 (F-type) 55 mm f/3.5 Micro, 5 elements in 4 groups, 1:2 (metal focus ring)
• 1969–1973 (F-type) 55 mm f/3.5 Micro-P, 5 elements in 4 groups, 1:2 (rubber, diamond-pattern focus ring)
• 1973–1975 (C-type) 55 mm f/3.5 Micro-P•C, 5 elements in 4 groups, 1:2 (rubber, diamond-pattern focus ring)
• 1975–1977 (K-type) 55 mm f/3.5 Micro, 5 elements in 4 groups, 1:2 (rubber, normal focus ring)
• 1977–1979 (Ai) 55 mm f/3.5 Micro, 5 elements in 4 groups, 1:2 (rubber, normal focus ring)
• 1979–2020 (Ai-s) 55 mm f/2.8 Micro, 6 elements in 5 groups, 1:1,9 (rubber, normal focus ring)
• 1986–1989 (AF) 55 mm f/2.8 Micro, 6 elements in 5 groups, 1:1 (rubber, normal focus ring)
• 1989–2008 (AF/AF-D) 60 mm f/2.8 Micro, 8 elements in 7 groups, 1:1 (rubber, normal focus ring)
• 2008–2020 (AF-S) 60 mm f/2.8 Micro, 12 elements in 9 groups, 1:1
• 2021-today (Z) MC 50 mm f/2.8, 10 elements in 7 groups, 1:1

Adapting

Besides adapting, this lens can be used natively on all current high-end Nikon dSLRs and several earlier medium-to-high-end older Nikon dSLRs. Moreover, if the camera body contains a slot-drive focusing motor, this lens will even auto-focus7. Likewise, if the lens has been retrofitted with ‘rabbit ears’, it can be natively used on all Nikon F-mount film cameras ever produced (without the rabbit ears, it is limited to post 1977 bodies).

Thanks to being a fully manual lens (manual aperture, manual focus), the lens can be adapted to all mirrorless cameras using a suitable dumb adapter (and such adapters are easy to find). Moreover, a large range of special adapters (helicoid adapters, tilt/shift adapters, speed boosters) for using Nikon F lenses on most mirrorless systems are available. Currently no adapters for mirrorless exist that would allow autofocus through the slot-drive screw.

Using Nikon F lenses on non-Nikon SLRs and dSLRs is likewise a distinct possibility. Thanks to the relatively generous flange focal distance of the Nikon F mount (46,5 mm), adapter rings for all dSLR mounts are available as well as for a goodly portion of film-era SLR mounts. Such rings will not allow autofocus, and are unlikely to support auto aperture, but even then the lenses can be used in stop-down metering mode.
