Pekka Buttler, 02/2026 (Updated 08/2026)
Note: This lens has also been on a walk-around. You can find the imagery and commentary here.
Specifications
The table below summarizes the lens’ key specifications (measurements based on pictured, last version of the lens):

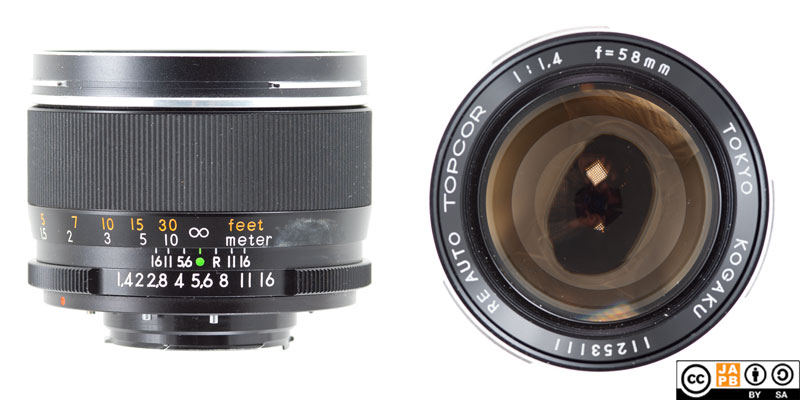

| Brand: | Tokyo Kogaku (Topcon) | Lens name | RE Auto-Topcor 1:1.4 f=58mm |
| Focal length(s)1 | 58 mm | Angle-of-view2 | 41 ° |
| Maximum Aperture | f/1.4 | In Production | 1963–1973 |
| Lens mount (this lens) | Topcon/Exakta | Generation | RE. Auto-TOPCOR3 |
| Length4 | 49,1 mm | Diameter5 | 66,9 mm |
| Filter ring diameter | 62 mm | Weight | 354 grams |
| Lens element count | 7 | Lens group count | 5 |
| Aperture blades (S/R/C)6 | 6 S | Focus throw | 300 ° |
| Minimum focusing distance (measured) | 44 cms | Maximum magnification (measured) | 1:5,9 |
| Has manual aperture ring | YES | Has Manual focus ring | YES |
| Aperture mechanism type | auto | Aperture click stops 7 | 1.4•2•2.8•4•5.6•8•11•16 |
Further notes:
• In an era when most lenses were uniformly black (and when even silver rings were going out of fashion), Topcon initially went in the opposite direction in the styling of their Topcon RE. Auto-TOPCOR series of lenses. These lenses were initially matte silver, with black rubber grips giving a contrast.
• However, after the 1971 introduction of the Super D, Topcon also started offering most of its lenses in black. The pictured lens is one of those later samples.
• Alike many other Japanese camera companies, Topcon initially opted for making their bright standard lenses longer than 50 mm. In Topcon’s case the result was a lineup of 58 mm lenses (f/1.8 and f/1.4). See more below.
• Even for an early f/1.4 lens, this is a rather large lens with its filter thread of 62 mm and correspondingly large front element.
• The filter threads do not rotate on focusing.
• The lens offers a relatively short minimum focusing distance of 44 centimetres. While this is far from taking the lens into the macro range, it does broaden the lens’ usage range.
• Topcon launched this lens’ successor (the Topcon RE GN TOPCOR M 50 /1.4) in 1973.

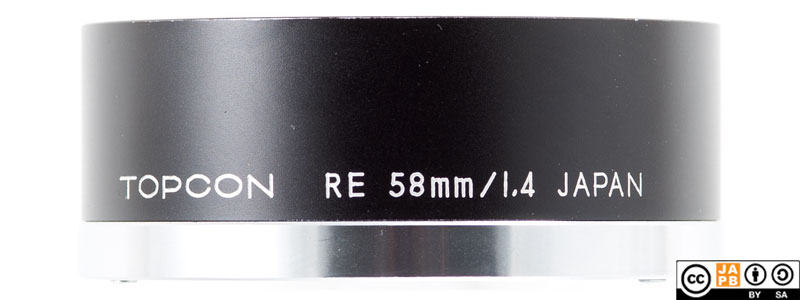

• Alike most Topcon RE. Auto-TOPCOR lenses of its era, this lens sports a chromed bayonet for attaching a lens hood as well as filter threads.
Versions and variations
This 58 mm f/1.4 Topcon lens is the fast fifty for the Topcon RE system and was introduced together with the groundbreaking RE Super in 1963.
There exist two main versions of the Topcon RE.Auto Topcor 58 mm f/1.4 lens, the later of which has 3 slightly different variants.
Version 1:
• The first 58/1.4 was launched in 1963, featuring a 7 elements in 5 groups design in a rather big (62 mm filter thread package). Serial numbers for this version start with the numbers ’94’.
Version 2:
• The second version was launched in 1965. It is outwardly identical to the first version, but some of the lens’ innards (including the optical design) have been tweaked. All samples of this second version start ‘112’
The second version itself has the following three variants:
| Variant | Starting year | Focal length in | Has cutout for backwards compatibility8 | Name ring text capitalised | Colour |
|---|---|---|---|---|---|
| 1 | 1965 | cm | yes | no | silver or (rarely) black9 |
| 1b | 1966(?) | mm | no | no | silver or (rarely) black |
| 2 | 1971 | mm | no | yes | black |
One interesting thing is that it seems that black copies of the 58/1.4 were offered relatively early (as early as 1966), and in advance of other lenses. This raises the possibility that the black samples of the fast fifty were initially offered as special feature to be coupled with special, early samples of the RE Super camera in black.
The 58 mm f/1.4 design was replaced in 1973 by the Topcon RE GN M 50 mm f/1.4 lens.
History of Topcon
Unless you know your camera lore, you might not know that Topcon was once – between 1957 and 1976 – one of the foremost camera companies in the world.
You can read more details in the Topcon company profile.
Adapting
When intending to adapt Topcon/Exakta lenses keep in mind that most Topcon/Exakta lenses have control pins in the lens flange that vanilla Exakta lenses do not have. Hence, there is a theoretical possibility to that some old-time Exakta adapters have been manufactured that do not accommodate these pins. When procuring an adapter, make sure that it explicitly is compatible with Topcon lenses, or visually inspect the adapter regarding whether it makes room for the Topcon control pins.
With that caveat, the following applies to all Topcon/Exakta mount lenses.
This lens cannot be used natively on any current SLR or dSLRs. To use it in its native environment, you will need a Topcon RE Super film body or one of the subsequent Topcon cameras with the Topcon Exakta mount. While these were never produced in immense numbers, they seem to have stood the test of time reasonably well, and can still be found in perfectly serviceable condition.
Thanks to being a fully manual lens (manual aperture, manual focus), the lens can be adapted to all mirrorless cameras using a suitable ‘dumb adapter’. Moreover, due to the popularity of the Exakta mount, special adapters (helicoid adapters, tilt/shift adapters) are readily available.
Using Exakta mount lenses on dSLRs can also be an easy option, depending on the marque of dSLR.
• Canon EF has the shortest flange focal distance among full-frame dSLR’s and Canon’s wide range of dSLRs are able to mount Topcon/Exakta lenses perfectly using a simple adapter ring.
• Minolta / Sony A dSLRs, Pentax K and Nikon F mount dSLRs do not have a short enough flange focal distance to enable reaching infinity focus without an adapter that uses corrective optics.
Footnotes
- Focal length is (unless stated otherwise) given in absolute terms, and not in Full-frame equivalent. For an understanding of whether the lens is wide/tele, see ‘Angle-of-view’. ↩︎
- Picture angle is given in degrees (based on manufacturers’ specs) and concerns the diagonal picture angle. Rule of thumb:
> 90 ° ==> Ultra-wide-angle
70–90 ° ==> Wide-angle
50–70 ° ==> Moderate wide-angle
40–50 ° ==> ‘Standard’ or ‘normal’ lens
20–40 ° ==> Short tele lens
10-20 ° ==> Tele lens
5-10 ° ==> Long tele lens
< 5 ° ==> Ultra-tele lens ↩︎ - See more about Topcon lens generations in Topcon Company profile. ↩︎
- Length is given from the mount flange to the front of lens at infinity. ↩︎
- Diameter excludes protrusions such as rabbit ears or stop-down levers. ↩︎
- S=straight; R=rounded; C=(almost)circular at all apertures. ↩︎
- Numbers equal aperture values on aperture ring; • intermediate click; – no intermediate click. ↩︎
- Early Topcon RE lenses included a cutout to enable mounting Topcon RE.Auto lenses on Topcon R family camera bodies. ↩︎
- Earliest observed black sample has the serial number 11214352 and does have the compatibility cutout. ↩︎
