Data sheet: Tamron 28 mm f/2.5 BBAR MC (adaptall-2)

Pekka Buttler, 03/2026

Specifications

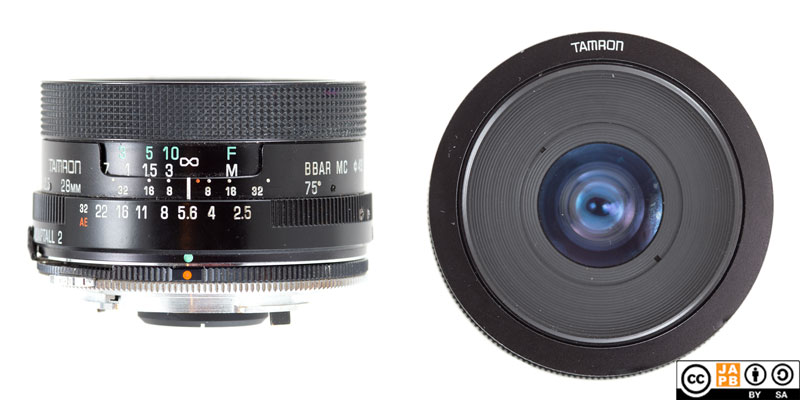

The table below summarises the lens’ key specifications (measurements based on pictured sample with Miranda adapter):

Brand:	Tamron	Lens name	1:2.5 28mm BBAR M C
Focal length(s) 1	28 mm	Angle-of-view 2	75 °
Maximum Aperture	f/2.5	In Production	1979–1992
Lens mounts (native)	Tamron Adaptall-2	Other lens mounts	See article on Adaptall
Length 3	33,1 mm (without adapter)	Diameter 4	64,7 mm
Filter ring diameter	49 mm	Weight	174 grams (without adapters)
Lens element count	7	Lens group count	7
Aperture blades (S/R/C) 5	5 S	Focus throw	120 °
Minimum focusing distance (measured)	26 cms	Maximum magnification (measured)	1:6,2
Has manual aperture ring	YES	Has manual focus ring	YES
Aperture mechanism type	Automatic	Aperture click stops (on preset ring) 6	2.5•4•5.6•8•11•16-22

Further notes:
• This lens was designed to use the Tamron Adaptall-2 intermediate mount
• Tamron has always had its own coding scheme for lens designs. This coding scheme is extremely useful to discern between two (or more) lenses that have the same mainline specifications (focal length and maximum aperture). According to the Tamron coding scheme, this lens is “Model 02B”.
• Tamron has produced 28 mm prime lenses since 1969, with this being Tamron’s fifth and final iteration of a 28 mm prime (see versions).

Versions

Tamrn has produced 28 mm prime lenses since 1969. Below is a quick summary of Tamron 28 mm primes:

Mainline spex	Mount	Years	Lens Model	Filter threads	Notes
28 mm f/2.8	Adapt-a-matic	1969–72		62 mm
28 mm f/2.8	Adapt-a-matic	1972-76	PFH-28Au	58 mm	[data sheet]
28 mm f/2.8	F (Fixed)	1976–		52 mm
28 mm f/2.8	Adaptall	1976–79	CW28	52 mm
28 mm f/2.5	Adaptall-2	1979–92	02B	49 mm	(this lens)

Nothing indicates that there were more than version of the Tamron 02B.

Adapting

Given that this lens uses an intermediate mount, there are several ways to go, depending on what your intention is

If you intend to adapt your Tamron Adaptall lens to a dSLR…

There are original Tamron Adaptall adapters to both Pentax K and Nikon F (Ai) available. These adapters allow you to use the tamron Adaptall lens as if it was a native (manual focus) lens (including aperture and aperture priority exposure automation). There are also modern adapters available from several adapter manufacturers, but – in general – these adapters are dumb adapters and do not allow aperture control.

If your dSLR is a Canon EF or Sony/Minolta A and Four thirds camera, you can get an aftermarket dumb adapter, but will have to manually control aperture.

To film SLRs?
You’re in luck, because there used to be Adaptall/Adaptall-2 adapters made for pretty much every mainstream SLR system available before the mid-70s, (including at least⁷: Canon FD*, Contax/Yashica*, Fujica X†, Konica AR*, M42 (several variants⁸), Mamiya Z°, Minolta SR*, Miranda°, Nikon F° (Pre-Ai and Ai), Olympus OM*, Pentax K (K° and A† versions), Praktica B†, Rollei QBM° and Topcon RE° (Exakta). What you need to do is head to your favourite online classifieds platform and procure an adapter (adapters for dSLR mounts are still available new).

Notes:
* Available both as Adaptall 1 and 2 (with different features)
° Available only as Adaptall 1
† Available only as Adaptall 2

To Mirrorless
If you already have a number of adapters from the typical SLR mounts to your mirrorless camera (e.g. Canon FD / M42 / Nikon F / Olympus OM / Pentax K …) your best choice is to either:

• get an original Tamron adapter from Adaptall to whatever your most favoured SLR era lens mount is or
• get a modern Tamron adapter to mirrorless adapter from one of the contemporary adapter manufacturers (K&F Concept seems to offer dumb adapters for Adaptall to most mirrorless mounts)

Of these, the earlier option is likely to be cheaper and the later less finicky.

Footnotes

1. Focal length is (unless stated otherwise) given in absolute terms, and not in Full-frame equivalent. For an understanding of whether the lens is wide/tele, see ‘Angle-of-view’. ↩︎
2. Picture angle is given in degrees and concerns the diagonal picture angle. Rule of thumb:
   > 90 ° ==> Ultra-wide-angle
   70–90 ° ==> Wide-angle
   50–70 ° ==> Moderate wide-angle
   40–50 ° ==> ‘Standard’ or ‘normal’ lens
   20–40 ° ==> Short tele lens
   10-20 ° ==> Tele lens
   5-10 ° ==> Long tele lens
   < 5 ° ==> Ultra-tele lens ↩︎
3. Length is given from the mount flange to the front of lens at infinity. ↩︎
4. Diameter excludes protrusions such as rabbit ears or stop-down levers. ↩︎
5. S=straight; R=rounded; C=(almost)circular at all apertures. ↩︎
6. Numbers equal aperture values on aperture ring; • intermediate click; – no intermediate click. ↩︎
7. This list will only contain adapters that we at JAPB have witnessed.  ↩︎
8. There were both adaptall adapters to vanilla M42 mounts as well as some of the M42 variants (such as Fujica M42, Mamiya M42, Praktica electronic M42). For details, see the JAPB article on the m42 mount. ↩︎
