Pekka Buttler, 12/2025
Specifications
The table below summarises the lens’ key specifications (measurements based on pictured sample with Canon FD adapter):
| Brand: | Tamron | Lens name | 35–70mm 1:3.5 CF MACRO BBAR MC |
| Focal length(s) 1 | 35-70 mm | Angle-of-view 2 | 64°–34° |
| Maximum Aperture | f/3.5 | In Production | 1982–87 |
| Lens mounts (native) | Tamron Adaptall | Other lens mounts | See article on Adaptall |
| Length 3 | 66,6 mm | Diameter 4 | 69,2 mm |
| Filter ring diameter | 58 mm | Weight | 388 grams |
| Lens element count | 7 | Lens group count | 7 |
| Aperture blades (S/R/C) 5 | 8 S | Focus throw | 90 ° (@35 mm) 330 ° (@70 mm) |
| Minimum focusing distance (measured) | 91 cms (@35mm) 24,5 cms (@70mm) | Maximum magnification (measured) | 1:4,3 (@70mm) |
| Has manual aperture ring | YES | Has manual focus ring | YES |
| Aperture mechanism type | Automatic | Aperture click stops (on preset ring) 6 | 3.5–4•5.6•8•11•16-22-32 |
Further notes:
• This lens was designed to use the Tamron Adaptall/Adaptall2 intermediate mount
• Tamron has always had its own coding scheme for lens designs. This coding scheme is extremely useful to discern between two (or more) lenses that have the same mainline specifications (focal length and maximum aperture. According to the Tamron coding scheme, this lens is “Model 17A”.
• While the lens outwardly communicates its focal length range as 35–70 mm, the actual focal length corresponds more closely to 36–68mm
• Upon its 1982 introduction this lens replaced the earlier “Model 09A” 35–70 mm f/3.5–4.5 lens.
• In turn, this lens would in 1986 be ‘replaced’ by the more economically manufactured “Model 44A” 28–70mm f/3-5–4.5. In actual fact, the mid 80s saw Tamron shifting its focus (pun intended) away from adaptall lenses and towards autofocus lenses.
• In terms of Tamron standard zooms offered through the Adaptall/Adaptall2 mounts, this lens was – with its unchanging maximum aperture – clearly the most ambitious offering.
• This is a two-ring zoom, with one (rearmost) ring controlling focal length/angle of view and another ring controlling focusing distance.
• While the focus ring is wide and grippy, the zoom ring is relatively narrow, but easy to grip thanks to its somewhat protruding ‘paddles’
• The lens changes length both when the zoom ring or focusing ring is rotated. Zooming from 70 to 35 mm lengthens the lens by almost 21 mm.

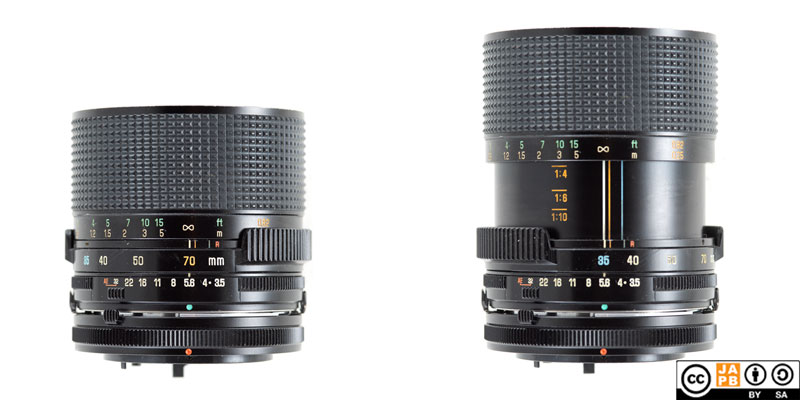

Right: the lens at 35 mm and inifity.
• The lens has a macro mode that is implemented in a rather ‘interesting’ way:
• If you start with the lens in its shortest mode (70 mm@infinity).
• First you turn the zoom ring to 35 mm (the lens lengthens by 21 mm)
• Now you rotate the focus ring to the MFD (at 35 mm). The lens lengthens by another 6 mm.
• If you now continue to turn the focus ring towards shorter focusing distances, the closer you focus, the more the lens zooms in (the zoom ring turns as you turn the focus ring)
• In the end you find yourself at the absolute macro setting (24,5 cm focusing distance) and the zoom ring at 70 mm, and the length of the lens is unchanged.

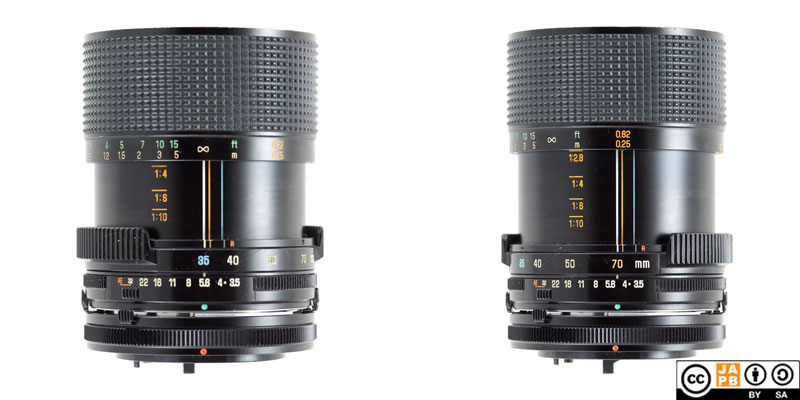

Right: Lens at MFD (At which stage the zoom ring has automatically adjusted to 70 mm)
Versions
While this is far from the only 35–70 zoom Tamron has ever there seems to be only one variant of the Tamron Model 17A.
Adapting
Given that this lens uses an intermediate mount, there are several ways to go, depending on what your intention is
If you intend to adapt your Tamron Adaptall lens to a dSLR…
There are original Tamron Adaptall adapters to both Pentax K and Nikon F (Ai) available. These adapters allow you to use the tamron Adaptall lens as if it was a native (manual focus) lens (including aperture and aperture priority exposure automation). There are also modern adapters available from several adapter manufacturers, but – in general – these adapters are dumb adapters and do not allow aperture control.
If your dSLR is a Canon EF or Sony/Minolta A and Four thirds camera, you can get an aftermarket dumb adapter, but will have to manually control aperture.
To film SLRs?
You’re in luck, because there used to be Adaptall/Adaptall-2 adapters made for pretty much every mainstream SLR system available before the mid-70s, (including at least7: Canon FD*, Contax/Yashica*, Fujica X†, Konica AR*, M42 (several variants8), Mamiya Z°, Minolta SR*, Miranda°, Nikon F° (Pre-Ai and Ai), Olympus OM*, Pentax K (K° and A† versions), Praktica B†, Rollei QBM° and Topcon RE° (Exakta). What you need to do is head to your favourite online classifieds platform and procure an adapter (adapters for dSLR mounts are still available new).
Notes:
* Available both as Adaptall 1 and 2 (with different features)
° Available only as Adaptall 1
† Available only as Adaptall 2
To Mirrorless
If you already have a number of adapters from the typical SLR mounts to your mirrorless camera (e.g. Canon FD / M42 / Nikon F / Olympus OM / Pentax K …) your best choice is to either:
- get an original Tamron adapter from Adaptall to whatever your most favoured SLR era lens mount is or
- get a modern Tamron adapter to mirrorless adapter from one of the contemporary adapter manufacturers (K&F Concept seems to offer dumb adapters for Adaptall to most mirrorless mounts)
Of these, the earlier option is likely to be cheaper and the later less finicky.
History of Tamron
A short history of Tamron can be found as part of the Tamron company profile.
Footnotes
- Focal length is (unless stated otherwise) given in absolute terms, and not in Full-frame equivalent. For an understanding of whether the lens is wide/tele, see ‘Angle-of-view’. ↩︎
- Picture angle is given in degrees and concerns the diagonal picture angle. Rule of thumb:
> 90 ° ==> Ultra-wide-angle
70–90 ° ==> Wide-angle
50–70 ° ==> Moderate wide-angle
40–50 ° ==> ‘Standard’ or ‘normal’ lens
20–40 ° ==> Short tele lens
10-20 ° ==> Tele lens
5-10 ° ==> Long tele lens
< 5 ° ==> Ultra-tele lens ↩︎ - Length is given from the mount flange to the front of lens at infinity. ↩︎
- Diameter excludes protrusions such as rabbit ears or stop-down levers. ↩︎
- S=straight; R=rounded; C=(almost)circular at all apertures. ↩︎
- Numbers equal aperture values on aperture ring; • intermediate click; – no intermediate click. ↩︎
- This list will only contain adapters that we at JAPB have witnessed. ↩︎
- There were both adaptall adapters to vanilla M42 mounts as well as some of the M42 variants (such as Fujica M42, Mamiya M42, Praktica electronic M42). For details, see the JAPB article on the m42 mount.
↩︎
