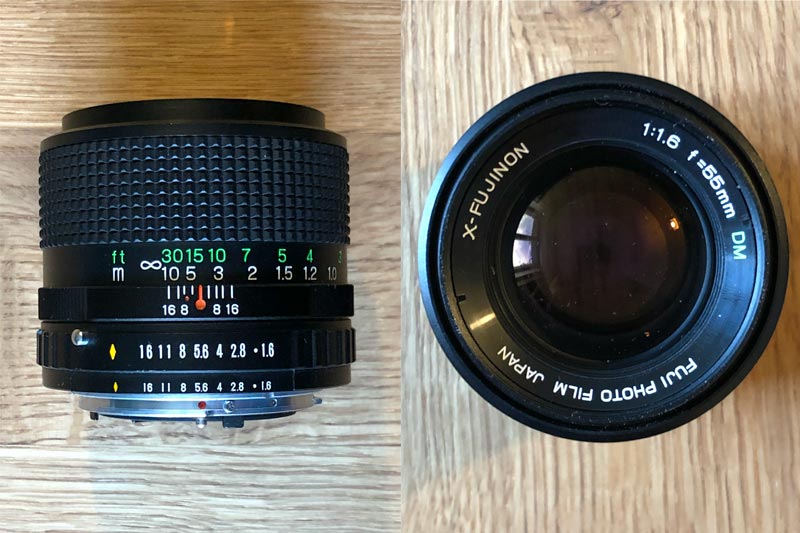

Data sheet: X-Fujinon 55 mm f/1.6 DM

Pekka Buttler, 08/2022 (corrected 08/2024)

Specifications

The table below summarizes the lens’ key specifications:

Brand:Fuji Photo FilmLens nameX-Fujinon 1:1.6 f=55mm DM
Focal length(s)155 mmAngle-of-view242°10′
Maximum Aperturef/1.6In Production1979– ≈ 1981
Lens mountFujica XSubfamily (if applicable)––
Length350,6 mmDiameter461,4 mm
Filter ring diameter49 mmWeight240 grams
Lens element count5Lens group count4
Aperture blades (S/R/C)56 RFocus throw≈185 °
Minimum focusing distance45 cmMaximum magnification1:6,0
Has manual aperture ringYESHas Manual focus ringYES

Further notes:
• While the lens name ring does not say it, by this time all but the most pedestrian Fuji Photo Film lenses sported Fuji’s proprietary coating technology referred to as ‘Electron Beam Coating’ or – in short – EBC.
• Besides aperture ring and focus ring, this lens has a button to control the aperture ring’s auto setting (indicated by the yellow diamond). To enter or exit the auto setting, that button has to be pressed.
• The ‘DM’ in the lens’ name stands for “Dial Mode” and means that the lens can be used (on a Fujica X body) in program and shutter priority mode, once the aperture ring’s auto setting is engaged.

History

Fuji Photo Film (nowadays: Fujifilm) was among the last major manufacturers to abandon the m42 thread mount for a proprietary lens mount. The Fujica STX-1 camera (introduced 1979) introduced a new lens mount (typically referred to as the Fujica X mount, not to be mistaken for the modern FujiX mount) and a series of new lenses.

Many (if not most) of the lenses initially introduced for the Fujica X -mount were simply old (and venerable) Fuji Photo Film designs from the m42 lens crammed into a new housing with a new mount.
Interestingly, this lens is not among those (even though there was a 55 mm f/1.6 lens with a 5 elements in 4 groups construction in Fuji’s M42 lens lineup). The table below summarises the commonalities and differences:

MountM42Fujica-X
Name (on ring)Fujinon 1:1.6 f=55mmX-Fujinon 1:1.6 f=55mm DM
Focal length55mm55mm
Maximum aperturef/1.6f/1.6
Elements and groups5 elements 4 groups5 elements 4 groups
element ordersingle-single-doublet-singlesingle-doublet-single-single
Diameter61,5 mm61,4 mm
Length38,1 mm50,6 mm
Weight180 grams240 grams
Minimum focus distance60 cm45 cm

Fuji has long been known for its high quality lenses – both in SLR’s compacts and medium and large format lenses – and it would have been interesting to see what Fuji Photo Film’s lineup of Fujica X lenses would have developed into. Alas, in the mid-1980s, Fuji Photo Film decided to withdraw from SLR manufacture and focused instead on both compacts and larger film formats. Whether that withdrawal was caused by disappointing sales of the Fujica X line, or due to the advent of autofocus SLR’s, I can only speculate.

Adapting

The only cameras able to natively mount Fujica X lenses are the Fujica STX and AX lines of manual focus, film SLRs. Should you want to use this lens on film, you can count yourself lucky that the AX and STX lines of Fujica’s generally seem to have well designed and manufactured, hence making compatible film bodies readily available for a pittance.

Adapting this lens to a mirrorless, full-frame digital camera is a breeze thanks to the lens having full manual controls (aperture ring, focus ring). However, due to the method of aperture control used the Fujica X lenses, the adapter will need a control ring to allow stopping down the lens (and you will need to remember to engage that ring). However, thanks to the relative scarcity of Fujica X lenses (caused, in part, by the shortish production run), Fujica X adapters are not quite as readily available as for more common, film-era mounts. Hence, while regular adapters are not difficult to come by, specialised adapters (such as speed boosters or tilt/shift adapters) are not easy to obtain.

Pictured: No-name Fujica X to Sony FE adapter (notice the lack of markings on the aperture control ring on this adapter)

Due to the shortish flange focal distance used by the Fujica X mount (43,5 mm), adapting this lens to dSLR/SLR mounts is not as problem-free, and – to retain anything near infinity focus – the adapter will necessitate corrective optics. Even so, adapters to many dSLR mounts are available.

Footnotes

1 Focal length is (unless stated otherwise) given in absolute terms (not in Full-frame equivalent), and according to the manufacturer’s naming practice (which does not always reflect the lens’ actual field of view). For an understanding of whether the lens is wide/tele, see ‘Angle-of-view’.

2 Picture angle is given in degrees and concerns the diagonal picture angle. Rule of thumb:
> 90 ° ==> Ultra-wide-angle
70–90 ° ==> Wide-angle
50–70 ° ==> Moderate wide-angle
40–50 ° ==> ‘Standard’ or ‘normal’ lens
20–40 ° ==> Short tele lens
10-20 ° ==> Tele lens
5-10 ° ==> Long tele lens
< 5 ° ==> Ultra-tele lens

3 Length is given from the mount flange to the front of lens at infinity. Measured unless stated otherwise.

4 Diameter excludes protrusions such as rabbit ears or stop-down levers. Measured unless stated otherwise.

5 S=straight; R=rounded; C=(almost)circular at all apertures.
