Pekka Buttler, 11/2022
Specifications
The table below summarises the lens’ key specifications (measurements based on pictured sample):
Brand: | Pentacon | Lens name | auto 2.8/29 multi coating |
Focal length(s)1 | 29 mm | Angle-of-view2 | 73 ° |
Maximum Aperture | f/2.8 | In Production | 1970-1990 (all versions together) |
Lens mounts | m42 (auto/electric) Exakta | Subfamily (if applicable) | –– |
Length3 | 45,0 mm | Diameter4 | 64,3 mm |
Filter ring diameter | 55 mm | Weight | 202 grams |
Lens element count | 7 | Lens group count | 7 |
Aperture blades (S/R/C)5 | 6 S | Focus throw | 150 ° |
Minimum focusing distance | 25 cms | Maximum magnification | 1:6,5 |
Has manual aperture ring | YES | Has Manual focus ring | YES |
Further notes:
• No, there’s no typo. The focal lens of this wide-angle is indeed 29 mm. If that is not idiosyncratic enough for you, consider that Pentacon was simultaneously also selling a 30 mm focal length lens (!).
• The Pentacon 29/2.8 is the successor of the Meyer-Optik Görlitz Orestegon 29/2.8 [data sheet] (Basically it’s the same lens, just rebranded).
• This lens was never manufactured for the Praktica B mount. On Praktica B mount there was the Pentacon Prakticar 28/2.8 [data sheet] – an altogether more modern lens.
History of Pentacon
There is little doubt that Germany was once world leader in the designing of cameras, lenses, and pretty much anything else photography related. Moreover, within Germany (pre-WWII Germany, to be precise), there was a region along the middle of the river Elbe and its tributary the Saale that would have earned the moniker Silica Valley. Just like the modern Silicon Valley, this area was a powerhouse of innovation within the still nascent photo-optic industry, housing both a plethora of camera makers, lens makers, and other, supporting industries. Optics was a booming industry, and even wars did little to change the industry’s growth trajectory.
But after the Second World War and the ensuing uneasy peace between the Western Allies and the Soviet Union, Silica Valley – residing in the modern German states of Thuringia and Saxony – ended up in the Soviet Zone of control, that – as tensions between erstwhile allies grew – developed into the ‘German Democratic Republic’ or East Germany – a Soviet satellite state directly juxtaposed to the ‘German Federal Republic’ or West Germany.
The Soviet-inspired East German system had no love lost for private enterprise (which was seen as tantamount to a rentier-class exploiting the proletariat), nor for companies competing for customers (which was seen as a woefully inefficient method for allocating scarce resources). Hence, most enterprises were quickly nationalised, and competing companies were continuously being forcibly merged with their erstwhile competitors. One result of this policy was the 1964 founding of VEB Pentacon Dresden (VEB = Volkseigener Betrieb ≈ Peoples’ own enterprise).
VEB Pentacon was founded through the merger of
• VEB Kinowerke Dresden (formerly VEB Zeiss Ikon),
• VEB Kamera-Werke Niedersedlitz (previously Kamera-Werkstätten Charles A. Noble),
• VEB Welta-Kamera-Werk Freital (incl. VEB Reflekta-Kamerawerk Tharandt),
• VEB Altissa-Camera-Werk Dresden,
• VEB Aspecta Dresden.
As a result, the central planners in East Berlin had merged the majority (Ihagee, makers of the Exakta were left alone, for now) of East German camera makers into one giant company. The resulting Pentacon (the name is a portmanteau of ‘Pentaprism’ and ‘Contax’) however focused solely on manufacturing cameras, and instead sourced their lenses from East German lens makers (mainly Carl Zeiss Jena and Meyer-Optik).
But with the success – both domestic and international – of Pentacon cameras, especially the Praktica line of SLRs, Berlin seems to have considered tighter co-ordination to have been the the next order of business. Hence, in 1968 VEB Feinoptishes Werk Görlitz (which had managed to keep branding their lenses ‘Meyer-Optik’ even though such singling out of one person (Hugo Meyer) was against the Soviet creed) and Ihagee were merged into Pentacon, making the resulting Pentacon a fully vertically integrated colossus (or, in soviet parlance, a combine.).
During the next two years, lenses previously having been branded Meyer-Optik Görlitz, started leaving their factory carrying the brand ‘Pentacon’ 6. Meyer-Optik had made some shrewd operational and design decisions, and in the post-war environment, characterised strongly by the proliferation of various SLR’s and other cameras (read: strong demand for lenses), MOG was having a field-day. Especially in the 1960s – just prior to the merger – Meyer-Optik was very prolific in coming up with new, cutting edge designs, so when Pentacon ‘took over’ Meyer’s lens catalogue, Pentacon was able to offer a broad range of cameras as well as lenses characterised by a very good bang/buck ratio.
While the merger worked wonders for Pentacon, the same can not be said for Pentacon lens designing. After having made immense progress in the 60s, Meyer/Pentacon lens design stagnated throughout the 70s and 80s. That is not to say that the lens lineup stayed unchanged, but that changes were either focused on minor recomputations of existing designs, economically driven simplification of lens mechanics, increased use of plastics, gradual adoption of better coatings and adoption of the Praktica B mount. It is sad to say that in the 20+ years after the Pentacon-Meyer merger, only one new lenses was introduced and only two lenses were given a major design tweak.
While I don’t want to give the impression that Pentacon lenses are generally sub-par (they were not, especially not when considering price), I am immensely saddened by the lost potential, especially considering the strides Japanese manufacturers were taking during that time. From Meyer having been at the forefront of innovation in the mid 1960s, Pentacon in the mid 1980s was increasingly the choice of only budget-conscious or ideologically inclined consumers.
Versions
I’ll admit this is a bit complicated…
Firstly, Pentacon/Praktica cameras used two variants of the m42 mount,
• one was the classic m42 auto mount (pin at the bottom of the lens for stopping down). These lenses were generally indicated by the phrase ‘auto’ on the lens’ name ring.
• the other was Pentacon’s proprietary m42 variant which used electric contacts to communicate set aperture values to the camera, but still used the same m42 auto pin for stopping down. These lenses were generally indicated by the phrase ‘electric’ on the lens’ name ring.
• Moreover, for some time (until Pentacon gave up on the Exakta), the Pentacon 29 was also manufactured in a variant of the Exakta-mount.
Having been manufactured for ≈20 years, there are several ergonomically and outwardly different models of the Pentacon 29/2.8. Furthermore, Pentacon (as well as MOG before them) often tended to – when possible – use up parts stocks, meaning that one can also encounter hybrids.
• Early, 1st generation models lacked multi-coating (indicated by the lack of either ‘MC’ or ‘multi coating’ on the lens’ name ring. These models would also typically have some zebra-like cosmetically elements, aperture values would be in black against a metallic background and distance values in feet were in red. The focus ring would be a milled metal ring. These lenses would not have an auto/manual switch but instead offered a button for DOF preview.
• 2nd generation models would be all-black, still have the feet indications in red, still have the DOF preview button, still not offer multi-coating, but the shape of the metal focusing ring would have changed from being lengthwise ribbed to a checkered pattern.
• 3rd generation models would outwards look like 2nd generation models, but would instead sport an auto/manual switch and offer multi-coating.

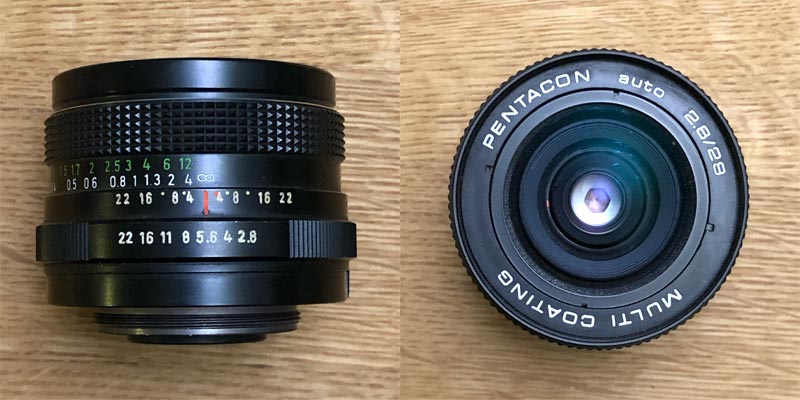

• 4th generation models would be very similar to 3rd generation models, but the color of the feet-indication would switch to green, and the typography of the name ring would change [the lens pictured above is a representative of this generation]
• just before the winding down of operations, a 5th generation would be introduced, most easily distinguishable by that the checkered pattern of the focus ring would stop being quadratic, and would instead become elongated along the optical axis. This version seems to be relatively rare.
That final, 5th variant was also sold in some markets under the name “Carl Zeiss Jena P 1:2.8 f=29 mm MC”. See more on the phenomenon of selling Pentacon lenses as ‘Carl Zeiss Jena’ lenses in this JAPB article.
Except the last, 5th generation variant, I’ve seen exemplars of all variants having been available in both m42 auto and m42 electric variants.
Adapting
[The following applies to the Pentacon 29/2.8 in m42 mount. If you have an Exakta mount sample, see adapting guidelines in JAPB’s article on the Exakta mount]
This lens cannot be used natively on any current SLR or dSLRs. To use it in its native environment, you will need an m42-mount film body. Luckily there are a lot of those available and in working order.
Thanks to being a fully manual lens (manual aperture, manual focus), the lens can be adapted to all mirrorless cameras using a suitable adapter. Moreover, m42 lenses are so uncomplicated that a simple ‘dumb adapter’ will do the job perfectly. Further, due to the popularity of the m42 mount, special adapters (helicoid adapters, tilt/shift adapters) are readily available. Alternatively, one can choose to daisy-chain adapters (e.g. m42->Canon EF; Canon EF –> mirrorless) which also opens up a wide range of speed boosters .
Using m42 lenses on dSLRs can also be an easy option, depending on which dSLR.
• Canon EF has the shortest flange focal distance among full-frame dSLR’s and Canon’s wide range of dSLRs are able to mount m42 lenses perfectly, using a simple adapter ring.
• Minolta / Sony A dSLRs and Pentax dSLRs are likewise able to mount m42 lenses using a simple adapter ring.
• Nikon F dSLRs have a long flange focal distance, meaning that mounting either M42 or Exakta lenses needs an adapter that uses corrective optics to allow anything close to infinity focus.
Footnotes
1 Focal length is (unless stated otherwise) given in absolute terms, and not in Full-frame equivalent. For an understanding of whether the lens is wide/tele, see ‘Angle-of-view’.
2 Picture angle is given in degrees (based on manufacturers’ specs) and concerns the diagonal picture angle. Rule of thumb:
> 90 ° ==> Ultra-wide-angle
70–90 ° ==> Wide-angle
50–70 ° ==> Moderate wide-angle
40–50 ° ==> ‘Standard’ or ‘normal’ lens
20–40 ° ==> Short tele lens
10-20 ° ==> Tele lens
5-10 ° ==> Long tele lens
< 5 ° ==> Ultra-tele lens
3 Length is given from the mount flange to the front of lens at infinity.
4 Diameter excludes protrusions such as rabbit ears or stop-down levers.
5 S=straight; R=rounded; C=(almost)circular at all apertures.
6 Pentacon 29/2.8 = Meyer-Optik 29/2.8 Orestegon
• Pentacon 30/3.5 = Meyer-Optik 30/3.5 Lydith
• Pentacon 50/1.8 = Meyer-Optik 50/1.8 Oreston
• Pentacon 100/2.8 = Meyer-Optik 100/2.8 Orestor
• Pentacon 135/2.8 = Meyer-Optik 135/2.8 Orestor
• Pentacon 200/4 = Meyer-Optik 200/4 Orestegor
• Pentacon 300/4 = Meyer-Optik 300/4 Orestegor
• Pentacon 500/5.6 = Meyer-Optik 500/5.6 Orestegor
